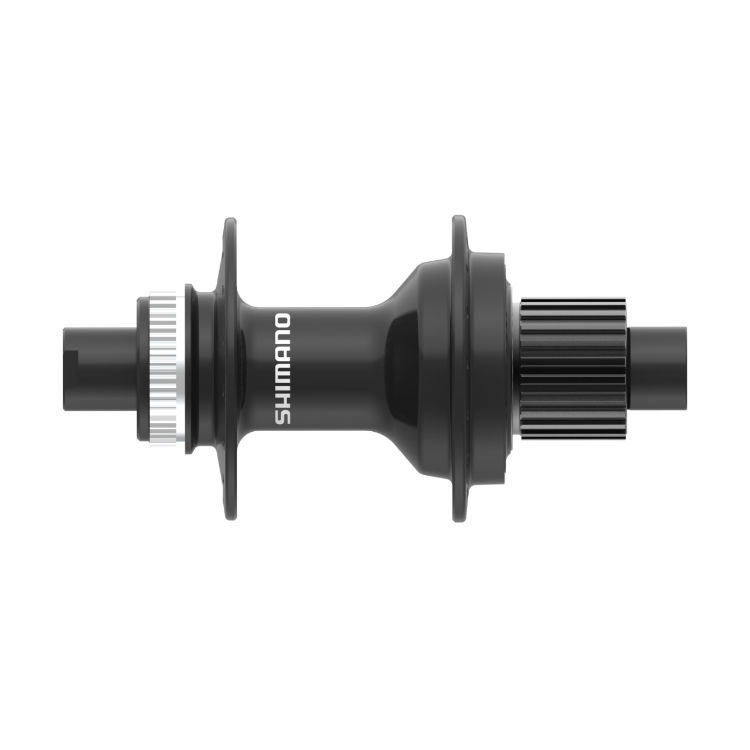

SHIMANO DEORE - Rear FREEHUB - MICRO SPLINE - CENTER LOCK - Disc Brake - 142x12 mm E-THRU Axle - 12-speed
SHIMANO DEORE Rear FREEHUB for Disc Brake 142x12 mm E-THRU 12-speed
FEATURES
- Simple setup and reliable trail performance
- Easy disc brake rotor installation with spline mount and lock ring
- Stiff & lightweight 12 mm E-THRU skewer system
- Labyrinth & Contact Sealing
- Smaller spline diameter for 10T top gear
- O.L.D.: 142 mm
PRODUCT SPECIFICATIONS
| MODEL NO | FH-MT410 |
|---|---|
| SERIES | DEORE M6100 Series |
| Color | Black |
| Brake type | CENTER LOCK disc brake |
| Axle fixing method | 12 mm E-THRU |
|---|---|
| Flange diameter Left/Right (mm) | 69.8/69.8 |
| Flange distance (mm) | 55.17 |
| Offset (mm) | 6.72 |
| P.C.D. left / right (mm) | 61/61 |
| Quick engagement | X (36 times/360 deg.) |
| 10 tooth cog compatible | ✔ |
| O.L.D. (mm) | 142 |
| Spoke hole_28H | ✔ |
| Spoke hole_32H | ✔ |
| Spoke hole_36H | ✔ |
| Rear speeds | 12 |
| Thru Axle (Length x Inner diameter ; mm)_142 x 12 | ✔ |
| Seal_FREEHUB body | Contact |
| Seal_Hub | Labyrinth & Contact |
| Color_1 Hub shell | Black |
| MICRO SPLINE | ✔ |
| Engagement type | Pawl ratchet |
SHIMANO DEORE Rear FREEHUB for Disc Brake ჰაბი
SKU: 0356
145,00GELPrice
